IP68
Square DOB · Waterproof 220V DOB module

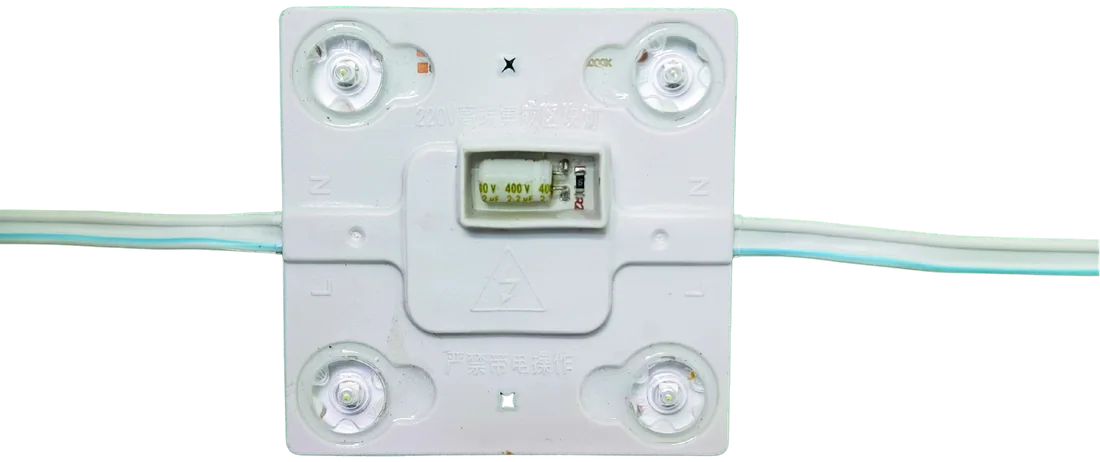

Nebula Square WP
IP68 waterproof 220V square DOB module, 4.5W.
- IP68
- 220V DOB
- 4.5W
View details
220V DOB
4.5W · 70 × 70 mm · 165° beam · 220V AC

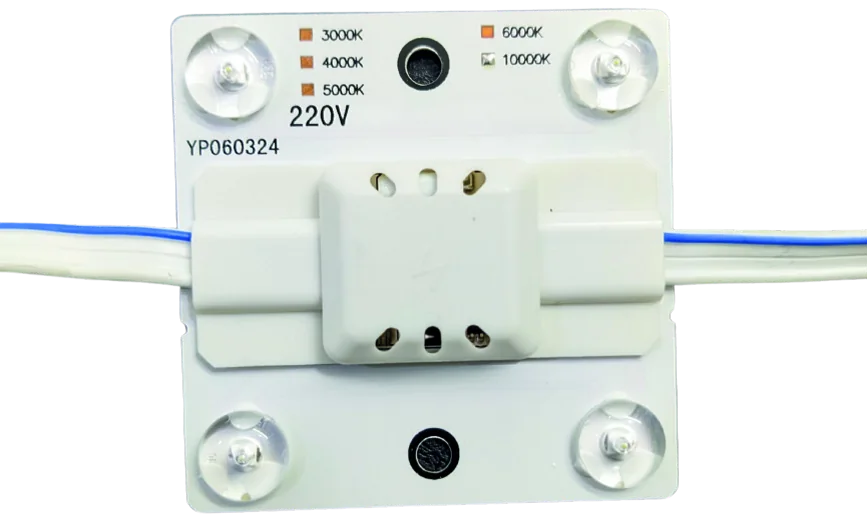

Nebula Square
Nebula Square DOB
A square driver-on-board module that runs straight off 220V — light big boxes fast.
220VAC direct
4.5WPower
70 mmSquare
1 yrWarranty
- CE marked
- 1 year warranty
Direct 220V product — no SMPS needed. It carries mains voltage: have it installed by a qualified electrician and never mix it with 12V circuits.
Overview
Why Nebula Square?
Nebula Square is a driver-on-board (DOB) module: the driver is built in, so each 70 × 70 mm square connects straight to 220V mains with no separate power supply.
Four lensed LEDs push light through a 165° beam at 4.5W per module, with pure-copper wiring, a rainproof build and a 50,000-hour rated life. Supplied in strings of 100; 1-year warranty.
- Driver on board — direct 220V
- 4.5W per square module
- Wide 165° beam
- Pure copper wire
- Rainproof · 50,000-hour life
- 1-year warranty
Light colour options
- White6500K
- White10000K
Where to use it
Large light boxesBacklit ceilings & panelsTotems & pylonsShop-front boards
Specifications
| Input voltage | 220V AC (direct, DOB) |
|---|---|
| Size | 70 × 70 mm (7 mm high) |
| Power | 4.5W per module |
| Brightness | 120 lm per pc |
| Beam angle | 165° |
| Wire | Pure copper |
| Pack | 100 modules per string |
| Operating temperature | −20 °C to +80 °C |
| Rated life | 50,000 hours |
| Protection | Rainproof |
| Light colour | White, 6500K / 10000K |
| Warranty | 1 year |
| Certification | CE |
Specifications as published in the BT GLO catalogue. Download the catalogue (PDF) or WhatsApp us for current stock and bulk pricing.
Pairs with
Complete the system
Products that work with Nebula Square.
Direct 220V
LED Modules · Direct-220V LED module
Ultra 220V
Direct-220V module: no SMPS needed, 170° beam, 6500K white.
- 220V direct
- 170° beam
- No SMPS
View details
Sign calculator
Plan your board in seconds.
Enter your board size and depth — get the module count, spacing and the power supplies you need.
FAQ
Nebula Square questions
Can't find your answer? Ask us directly — we're happy to help.
What does DOB mean?
Driver On Board — the LED driver is built into the module, so it runs directly from 220V AC without a separate SMPS.
Nebula Square or Nebula Square Waterproof?
Both are 4.5W, 220V DOB modules. Choose the Waterproof version (IP68) for exposed outdoor boxes; the standard version is rainproof.
Can I connect 12V LED modules directly to 220V mains?
No. 12V DC products (2W Samsung, Vega, Apollo, Titan Eco, Mini, Astra DC and Astra Waterproof) must always run through a 12V SMPS. Connecting them to 220V destroys them instantly and is a fire and shock risk. Only Ultra 220V, Nebula Square and Astra 220V are made for direct mains.
