Small letters
1W · 100 lm · 175° beam · 12V DC
Mini

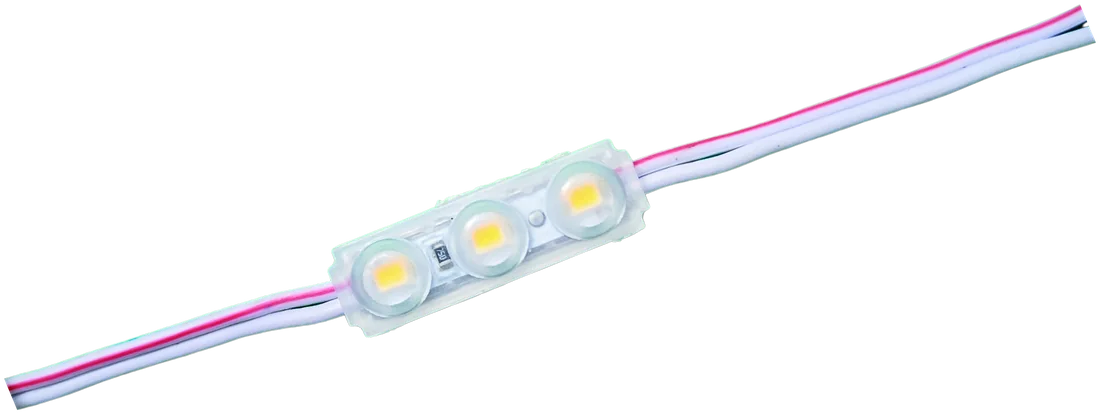

Mini LED Module
A 30 mm module with a 175° beam for small letters and slim boxes.
30 mmLength
100 lmBrightness
175°Beam angle
1WPower
- CE marked
- 1 year warranty
12V DC product. Always power it through a 12V SMPS — never connect it directly to 220V AC mains.
Overview
Why Mini?
At just 30 × 10 mm and 5 mm high, Mini fits where standard modules can't — narrow channel letters, slim light boxes and small logos.
A PMMA lens spreads 100 lumens through a very wide 175° beam from 1W. Copper wire, a rainproof build and a 50,000-hour rated life; five light colours and a 1-year warranty.
- Only 30 × 10 mm, 5 mm high
- Very wide 175° beam
- 100 lumens from 1W
- Rainproof · 50,000-hour life
- Five light colours
- 1-year warranty
Light colour options
- White10000K
- Warm White3000K
- Red619nm
- Green518nm
- Blue460nm
Where to use it
Small channel lettersSlim light boxesLogos & 3D lettersWelcome & name boards
Specifications
| Input voltage | 12V DC |
|---|---|
| Size | 30 × 10 mm (5 mm high) |
| Power | 1W per module |
| Brightness | 100 lm per module |
| Beam angle | 175° |
| Lens | PMMA |
| LED | Single chip |
| Wire | Copper |
| Pack | 20 modules per string |
| Operating temperature | −20 °C to +80 °C |
| Rated life | 50,000 hours |
| Protection | Rainproof |
| Warranty | 1 year |
| Certification | CE |
Specifications as published in the BT GLO catalogue. Download the catalogue (PDF) or WhatsApp us for current stock and bulk pricing.
Pairs with
Complete the system
Products that work with Mini.
High efficiency
Power Supplies · High-efficiency rainproof SMPS
StellarX
12V, 31.6A rainproof SMPS with >95% efficiency and 2-year warranty.
- 31.6A
- >95% eff.
- 2-yr warranty
View details
More LED Modules
Others in this range
New
LED Modules · Professional 3-LED module
2W Samsung
New 2W module: original Samsung LEDs, 185 lumens and a 5-year warranty.
- 2W
- 185 lm
- 5-yr warranty
View details
Double LED
LED Modules · Double-LED module
Vega
1.8W double-LED module with a 170° beam and a 2-year warranty.
- 1.8W
- 170° beam
- 2-yr warranty
View details
Samsung Korea
LED Modules · Samsung Korea LED module
Apollo
1.5W module with Samsung Korea LEDs, 120 lumens and a 2-year warranty.
- Samsung Korea
- 1.5W
- 2-yr warranty
View details
Sign calculator
Plan your board in seconds.
Enter your board size and depth — get the module count, spacing and the power supplies you need.
How small a letter can Mini light?
Mini is 30 × 10 mm and 5 mm high, so it fits narrow channel letters and slim boxes where 70 mm modules won't. Send us your letter size and stroke width for a layout.
How many Mini modules can one SMPS run?
At a safe 80% load, a 31.6A supply such as StellarX or Comet runs roughly 300 Mini modules at 1W each.
Can I connect 12V LED modules directly to 220V mains?
No. 12V DC products (2W Samsung, Vega, Apollo, Titan Eco, Mini, Astra DC and Astra Waterproof) must always run through a 12V SMPS. Connecting them to 220V destroys them instantly and is a fire and shock risk. Only Ultra 220V, Nebula Square and Astra 220V are made for direct mains.
